| Model | Hc-mb2063 |
| Max.Working Width | 635 |
| Max.Working Thickness | 200 |
| Min.Working Thickness | 15 |
| Min.Working Length | 320 |
| Cutter Knife | 4 |
| Flat Knife Spec | 635*30*6 |
| Spindle Rotation Rate | 5000 |
| Feeding Speed | 5-20 |
| Spindle Dia. | φ110 |
| Top Spindle Power | 11 |
| Bottom Spindle Power | 7.5 |
| Feeding Motor Power | 2.2 |
| Elevating Motor Power | 0.37 |
| Total Power | 21.07 |
| Dimension | 2700*1268*1680 |
· Working width 635mm (25 ") · Quick thickness setting means · Attached numerical controller · Optional spiral cutter head · Lifting column with Centralized lubrication system · Feeding frequency inverter with frequency motor
Centralized lubrication system
The configuration set to the centralized lubrication system, facilitate the lifting system maintenance lubrication

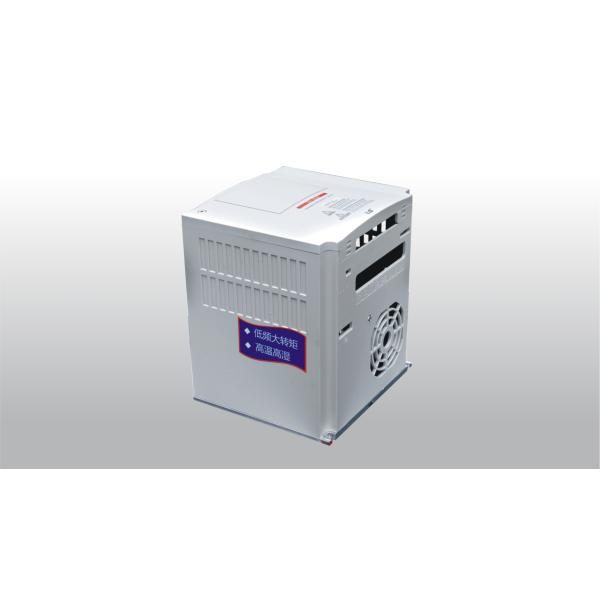

Feeding frequency inverter
Digital display, easy operation, energy saving,reduction of mechanical transmission wear.
Thickness Quick set
Simply preset thickness timber placed at the microswitch, you can do simple thickness settings. (MB2063 as standard, the remaining configuration is optional)
Gate magnetic induction switch
The thickness of the display gate magnetic sensors,accuracy is much higher than conventional proximity sensor.
Rear operation box
Machine emergency stop or abnormal reactions only feed stop and start
Feeding device is with clutch,which can prevent overload and give a safe operation.
Auto grease device keeps the machine always lubricated during working.
Alarm detector: When overload or stripping occurs with feeding chain, the alarm switch will give out signal alarm.
The product is provided with imported digital display device,which can be operated directly to processing thickness from operating panel with the accuracy up to 0.05mm;
besides,upper and lower planning motor is provided with current meter for visual observing if it is overloaded while working.(optional)
Optional Configuration

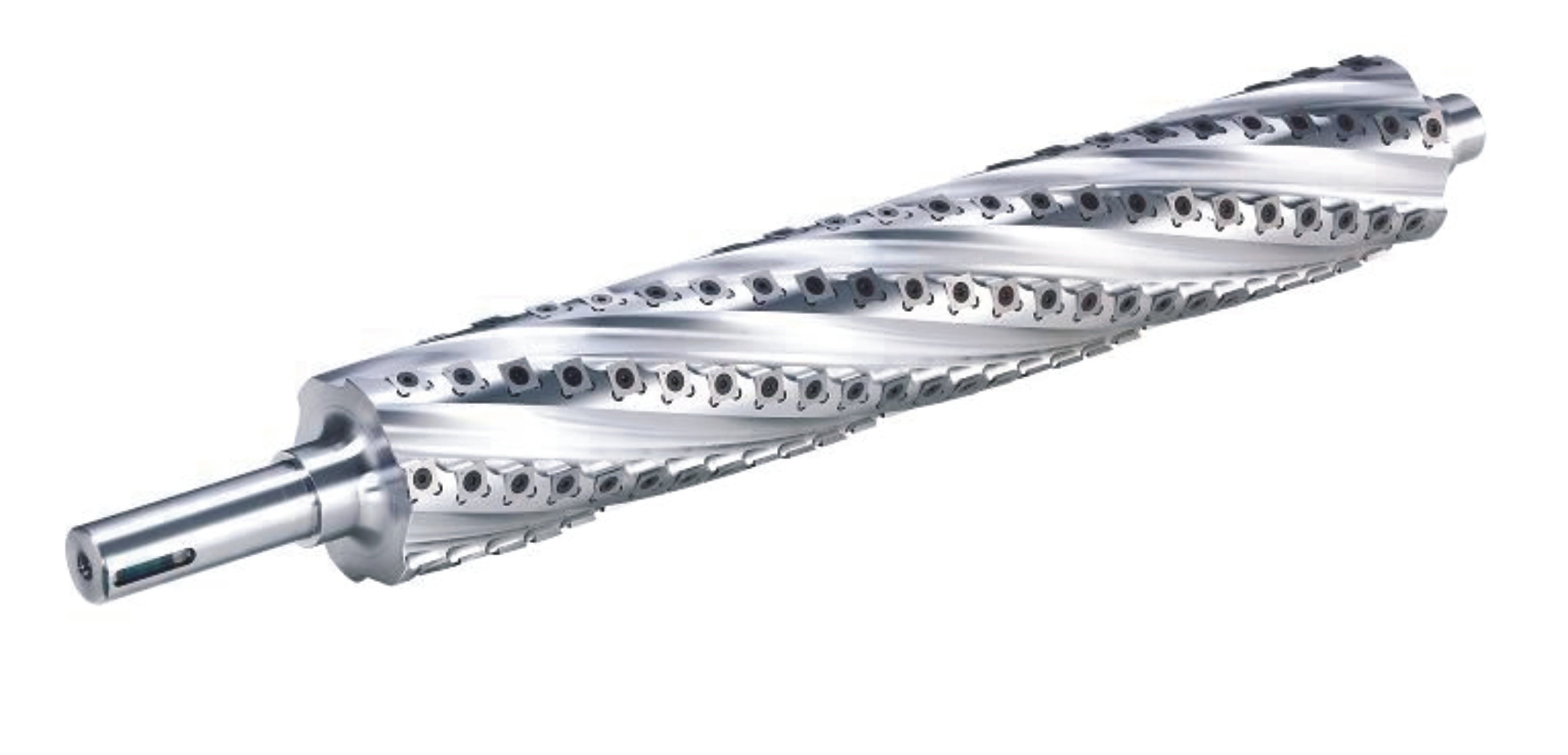

Screw arbor (Heavy Duty) optional
Arbor screw precision machining
Provide fine planing surfacing, and no noise
Arbor screw assembly removable tungsten carbide blade
MB2063: Blade size (30×12×1.5)×90pcs
MB2045D: Blade size (30×12×1.5)×63pcs
MB2040: Blade size (30×12×1.5)×57pcs
MB2032: Blade size (30×12×1.5)×45pcs
The table surface is hard The three table rollers provide superior feeding performance
• The dovetailed slideways on the table elevation assure outstanding rigidity and stability
• Standard Y-delta motor starting
• Quick belt change for bottom cutterhead
• Automatic lubrication for feeding chain
• Automatic lubricator provides convenient lubrication to caterpillar chain slideways(optional)
• An air wrench is applied for removing or installing knives and saves knife change time
• Optional spiral cutter head for the upper and lower cutter heads
• The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance
