High Performance 4 Sided Wood Planer , Four Sided Planer Moulder With 5 Spindle
Medium Duty Four Side Moulder VH-M516
Before sales,professionals will introduce the product's performance to
customers.Nevertheless,they will recommend the most satisfied product of our company to
customers according to the product that customers produce.
Outstanding Character of Moulder VH-M516

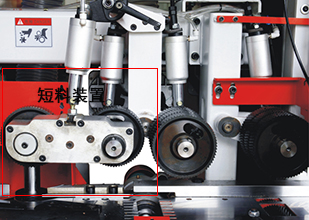

 | Optional short material pressure roller device to ensure short workpiece feeding smoothly. |
 | The front and back pressing plate can be adjusted respectively. Even the thickness of workpiece changes frequently, you can still stabilize it under worktable by the plate. |
 | Control panel with new concept design is more convenient and comfortable for the operater. The two button on the left can adjust the feeding wheel pressing force in stages to ensure smoothly feed-in wood materials with different thicknesses. |

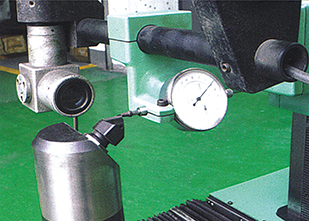

 | Every accessory quality is guranteed with exquisite processing equipment and elaborate technology. |
Best value:Excellent talents ,good management,superior product, considerate service,high profit,colorful culture;
| Model | | VH-M516 |
| Specification | Working width | 25-160 |
| | Working thickness | 8-120 |
| | Working table length | 1500 |
| | Feeding speed | 6-36 |
| | Main spindle diameter (mm) | Φ 40 |
| | Main spindle revolution(r/min) | 6500 |
| | Air pressure (Mpa) | 0.6 |
| Motor power(KW) | 1st LowerShaft | 4kw/5.5HP |
| | Right vertical spindle | 4kw/5.5HP |
| | Left vertical spindle | 4kw/5.5HP |
| | 1st UpperShaft | 5.5kw/7.5HP |
| | 2nd Lower Shaft | 4kw/5.5HP |
| | Feeding beam lifting | 0.55kw/0.75HP |
| | Feeding motor | 3kw/4HP |
| | Total power | 25.05kw/34HP |
| Cutter diameter | 1st Lower Shaft | Φ 125 |
| | Right Vertical spindle | Φ 125-Φ 160 |
| | Left vertical spindle | Φ 125-Φ 160 |
| | 1st Upper Shaft | Φ 125-Φ 160 |
| | 2nd Lower Shaft | Φ 125-Φ 180 |
| Remark | Feeding wheel diameter (mm) | Φ140 |
|
| Dust outlet diameter(mm) | Φ140 |
The Medium duty (For wooden furniture and wood profile processing)
Existing into the keen competition,farness foresight,have the courage to exploit the
market and ou would be the winner. V-hold is persist in exploit the inside and
outside market ,At present v-hold built up a stabilized distribution link in the every
province and covered the China mainland in overseas market. V-hold had extend
his market to Occident and southeast Asia.
