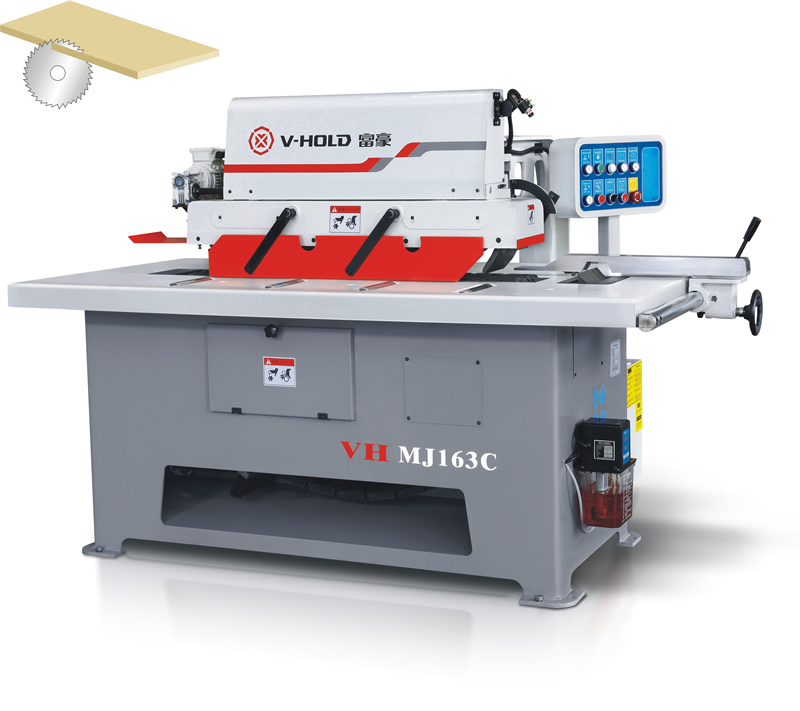

Automatic Single Rip Saw Machine Vertical Layout

Brand Name : V-HOLD

Model Number : MJ163C

Certification : ISO9001:2015

Place of Origin : china

MOQ : 1

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Power Type : Electric

Layout : Vertical

Controlling Mode : Automatic

Automatic Grade : Automatic

Precision : Precision

Contact Now

Product Description

Single rip trimming saw-bottom saw,Equipped with casting chain plates and guide track with special material and special design. And the saw spindle is bottom type. Safe operation,stable performance and high processing quality.
Max.saw blade diameter φ400mm
Max.working thickness 80mm
Cutting width 410mm
Main spindle revolution 3300r/min
Spindle diameter φ50.8mm
Feeding speed 7-25m/min
Feeding motor power 1.5kw
Main motor power 7.5kw
Lubricate pump motor power 20w
Total power 9.02kw
Working table sizer 1720*912mm
Dimension 1950*920*1380mm
Net weight 1100kg

Component discrbution

Automatic Single Rip Saw Machine Vertical Layout

component description

Automatic Single Rip Saw Machine Vertical Layout

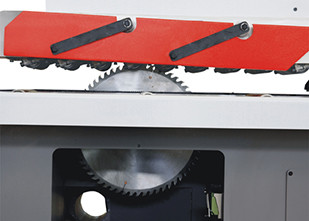

Saw blade under the working surface, so that the

process of cutting more secure.

Automatic Single Rip Saw Machine Vertical Layout

Auxiliary roller

8 sets of pressing wheel device to ensure the stability

of the wood in the conveying process.

Automatic Single Rip Saw Machine Vertical Layout

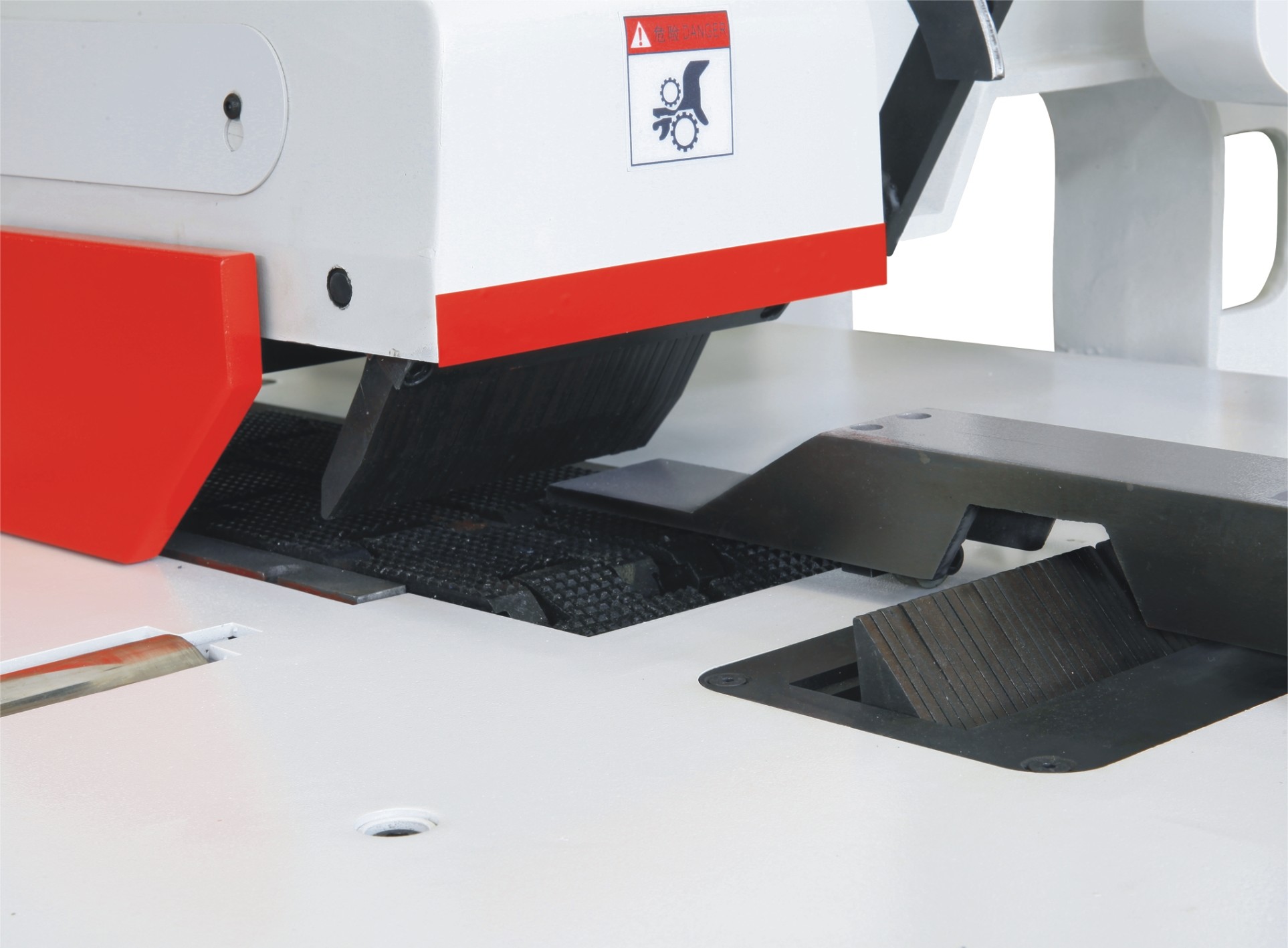

The DOUBLE-BRACK chain conveyer has wide working

surface so that the material can be straightly, Precisely

and smoothly .

Automatic Single Rip Saw Machine Vertical Layout

Automatic lubrication

Automatic controlled oil pump provides lubrication to

all major parts to extend the machine service life.

Automatic Single Rip Saw Machine Vertical Layout

Powered elevation device(OPtion)

Automatic Single Rip Saw Machine Vertical Layout

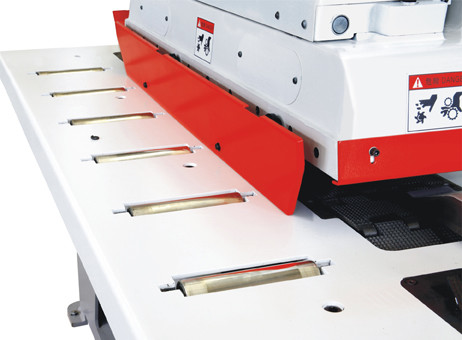

Worktable internal roller,convenience forprocessing

and feeding back of big board.

Automatic Single Rip Saw Machine Vertical Layout

The cast iron fence slide on the hard-chromium treatment

round bar together with the lock system,that is providing

accurate reading and position of the .

Automatic Single Rip Saw Machine Vertical Layout

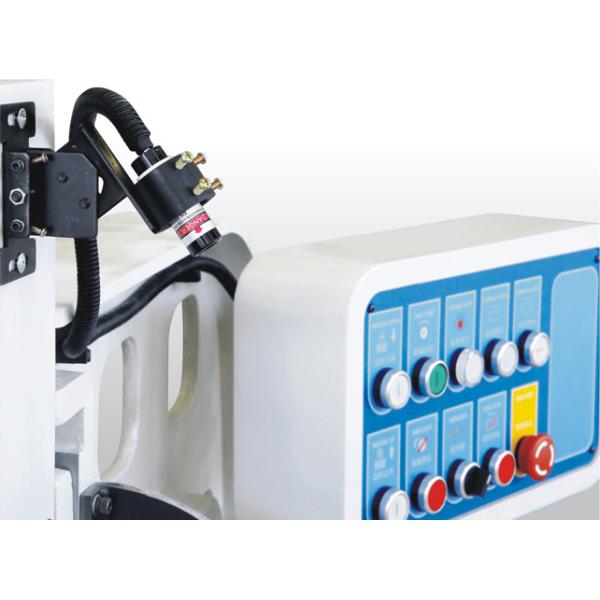

Lnfred alignm ent devince can enable the saw to find its

accurate position effciency.

Automatic Single Rip Saw Machine Vertical Layout

Rebound prevention device can protect operators thorughly.
