Multifunction Combination Woodworking Machine , Commercial Woodworking Equipment
Stable and reliable quality advantage V-HOLD devotes to pursuiting high class quality.He has already passed
certificate of ISO9001:2015 and has some testing equipment such as CMM,Metallographic Analyzer,Ultrasonic Flaw
Detector,Optical Tool presetting jigs.In 2002,the products entered into the America market successfully and meets
the requirement of UL and CSA. All the products received CE certification by TUV during 2005 and was assigned
the supplier of U.N. in 2005.
During sales,salesmen will be prepared to keep in smooth touch with company production line according to
customers' demand in order to deliver the goods on time.
After sales,professional after-sale service staff will follow up,find out, and solve possible problems when customers
usr our products.
With conveyor belt for material delivery,the labour intensity of the operators has been decreases a lot.
Before sales, professionals will introduce the product's performance to customers. Nevertheless,they will recommend
the most satisfied product of our company to customers according to the product that customers produce.
 |  |
| The motor can be adjusted with in the scope of 6000- 8000r/min by adopting high speed electric driven shaft. | With high speed electric driven shaft,the clamp cutter can be frequency converted within the scope of 6000- 8000r/min |

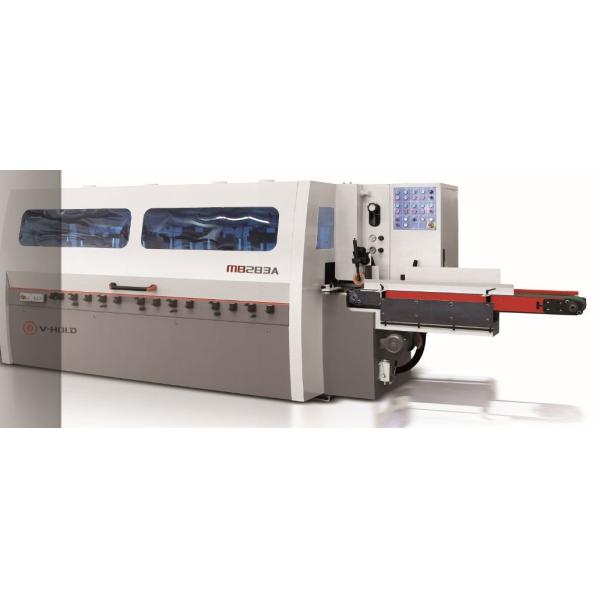

Floor Production Line MB283A
| Specification and Model | MB283A |
| Max. Working wiidth (mm) | 300mm |
| Min. Working width (mm) | 60mm |
| Max. Working length (mm) | 2400mm |
| Min. Working length (mm) | 600mm |
| Feeding speed (m/min) | 8-50m/min |
| Vertical and click shaft revolution (r/min) | 6000/6000-8000r/min |
| Vertical and click shaft diameter (mm) | Φ40mm |
| Vertical milling cutter diameter (mm) | Φ160-200mm |
| Click milling cutter diameter (mm) | Φ180mm |
| Feeding rubber roller diameter (mm) | Φ180x12units |
| Vertical spindle motor power (kw) | 4kwx4sets 3kwx2sets |
| Card buckle spindle motor power (kw) | 2.2kwx2sets |
| Feeding motor power (kw) | 5.5kw |
| Elevatory motor power (kw) | 0.75kw |
| Lifting motor power (kw) | 0.75kw |
| Total power (kw) | 35.4kw |
| Air pressure (MPa) | 0.6MPa |
| Physcial dimension (mm) | 4880x1760x1810mm |
All of the shaft rack is of 4-shaft joint machining ,with the precision tolerance of only 0.02mm ,ensuring the precision
of the accessories .All of the shaft rack & spare parts is be machining by 4-shaft joint machine.
Every main shaft must strictly be tested for dynamic balance, ensuring the smooth tunning of the cutter shaft.
Situated in Lunjiao town, Shunde district of Foshan city, the biggest woodworking machinery
production base as well as “the Chinese leading woodworking machinery town”, V-HOLD
woodworking machinery manufacture Co.,Ltd is a large well-known company integrated
woodworking machinery research, processing, marketing as well as application service.
