High Efficiency 5 Head Moulder Woodworking Equipment Vibration Reduction Performance

Name: High Efficiency 5 Head Moulder Woodworking Equipment Vibration Reduction Performance
Brand: V-HOLD
Price: 1 USD

China High Efficiency 5 Head Moulder Woodworking Equipment Vibration Reduction Performance wholesale

Brand Name : V-HOLD

Model Number : VH-M523 . VH-M521 , VH-M518 , VH-M516

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Product Type : Four Side Moulder

Feeding Speed : 36 m/min

Voltage : 380 / Customize

Head Number : Five Head

Warranty : One Year

Condition : New

Contact Now

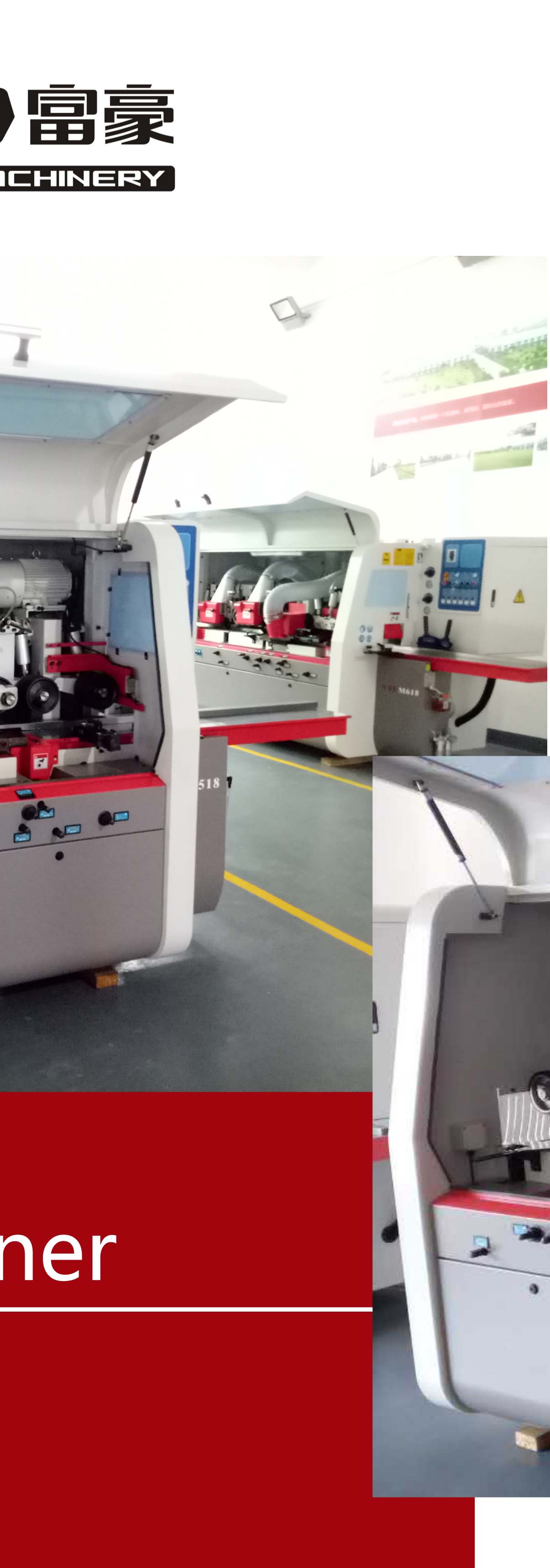

Practical Woodworking machine Five Head Four Side Moulder for wooden stair rail,Dust outlet diameter140mm

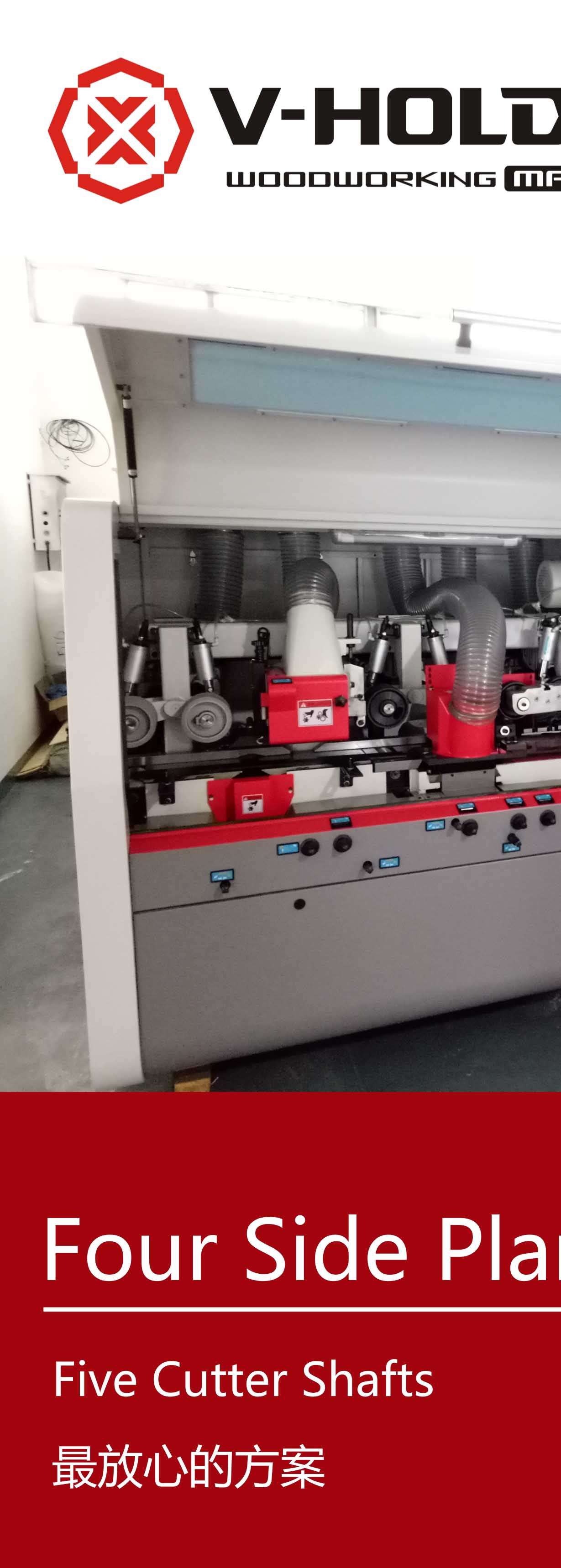

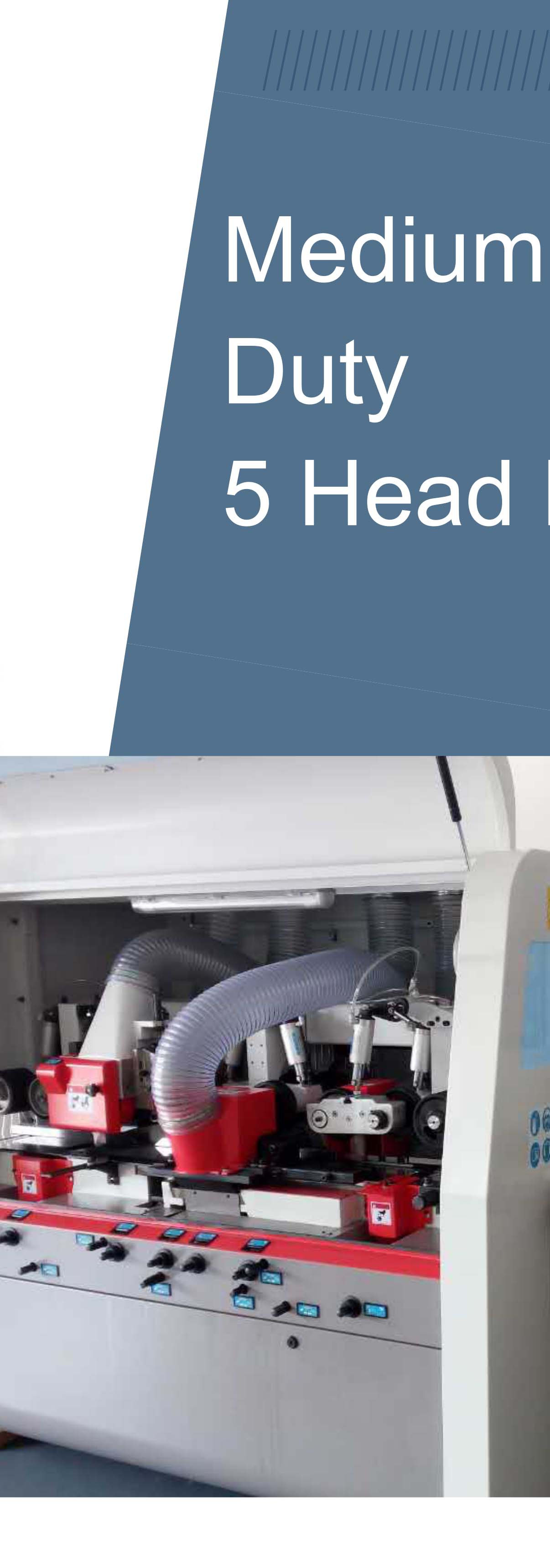

Four Side Planer VH-M516 and VH-M518 both have 5 heads with same motor power, there are one left

spindle, one right spindle, one upper spindle and two spindles on the bottom. Each spindles have its own

Motor, which can guarantee the power for cutting. Our planer use Inverter to feed, speed range is 6-36m/min.

Both Planers have High rigid body structure, as it was made from cast iron. The damping performance and the

rigidity of the machine body would be better compared with steel. So laying a good foundation for the smooth

running of the cutter shaft and feeding system.

Adopting hard chromed worktable to minimize abrasion, and enhance operational life span. Planers are

configured the short material auxiliary device in the front, can effectively improve the smooth feeding of short

material.

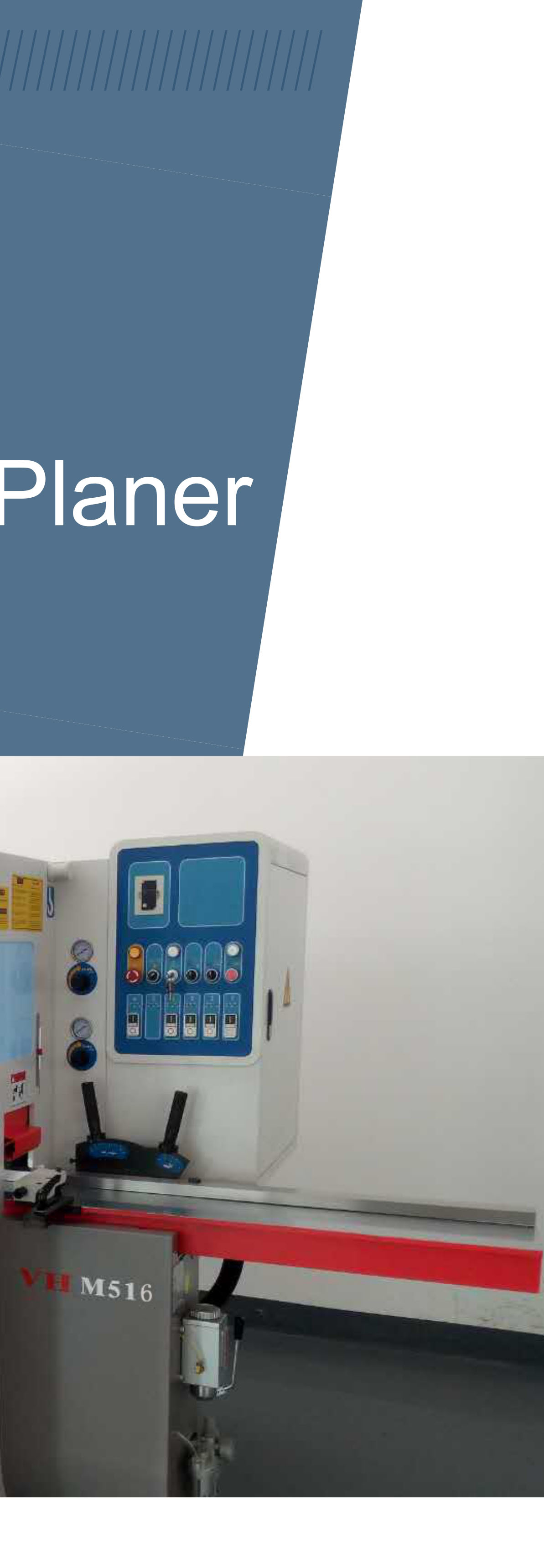

The only difference between VH-M516 and VH-M518 are their processing width, for VH-M516 can only

process materials no wider than 160mm, VH-M518 can process bigger materials with 180mm width. It

depends on what kinds of wood materials customer use.

High Efficiency 5 Head Moulder Woodworking Equipment Vibration Reduction Performance

VH-M516 and VH-M518 can be used for

processing Soft wood strip, Medium cutting

capacity strip, MDF strip, HDF strip, Glued

laminated timber and Square boards. For

wooden furniture and wood profile processing.

Model		VH-M518	VH-M516
Specification	Working width	25-180	25-160
	Working thickness	8-130	8-120
	Working table length	1500	1500
	Feeding speed	6-36	6-36
	Main spindle diameter (mm)	Φ 40	Φ 40
	Main spindle revolution (r/min)	6500	6500
	Air pressure (Mpa)	0.6	0.6
Motor power (KW)	1st Lower Shaft	4kw/5.5HP	4kw/5.5HP
	Right vertical spindle	4kw/5.5HP	4kw/5.5HP
	Left vertical spindle	4kw/5.5HP	4kw/5.5HP
	1st Upper Shaft	5.5kw/7.5HP	5.5kw/7.5HP
	2nd Upper Shaft	/	/
	2nd Lower Shaft	4kw/5.5HP	4kw/5.5HP
	Feeding beam lifting	0.55kw/0.75HP	0.55kw/0.75HP
	Feeding motor	3kw/4HP	3kw/4HP
	Total power	25.05kw/34HP	25.05kw/34HP
Cutter diameter	1st Lower Shaft	Φ 125	Φ 125
	Right Vertical spindle	Φ 125-Φ 160	Φ 125-Φ 160
	Left vertical spindle	Φ 125-Φ 160	Φ 125-Φ 160
	1st Upper Shaft	Φ 125-Φ 160	Φ 125-Φ 160
	2nd Lower Shaft	Φ 125-Φ 180	Φ 125-Φ 180
Remark	Feeding wheel diameter (mm)	Φ140	Φ140
	Dust outlet diameter (mm)	Φ140	Φ140

High Efficiency 5 Head Moulder Woodworking Equipment Vibration Reduction Performance

Ordinary home decoration when many people will choose solid wood staircase, so why use solid wood staircase?

Solid wood stairs generally use wood is better wood, high hardness, good substance. So the staircase is also more

solid. And these timber have a certain natural color, pattern is also better, in many cases is a natural color and natural

text by people's deep love and acceptance.
