High precision Woodworking machine VH-M518, 5 Head Four Side Moulder
Five Head Moulder VH-M518
| | Professional solution for processing Soft wood strip, Medium cutting capacity strip, MDF strip, HDF strip, Glued laminated timber and Square boards. |  |
Outstanding character

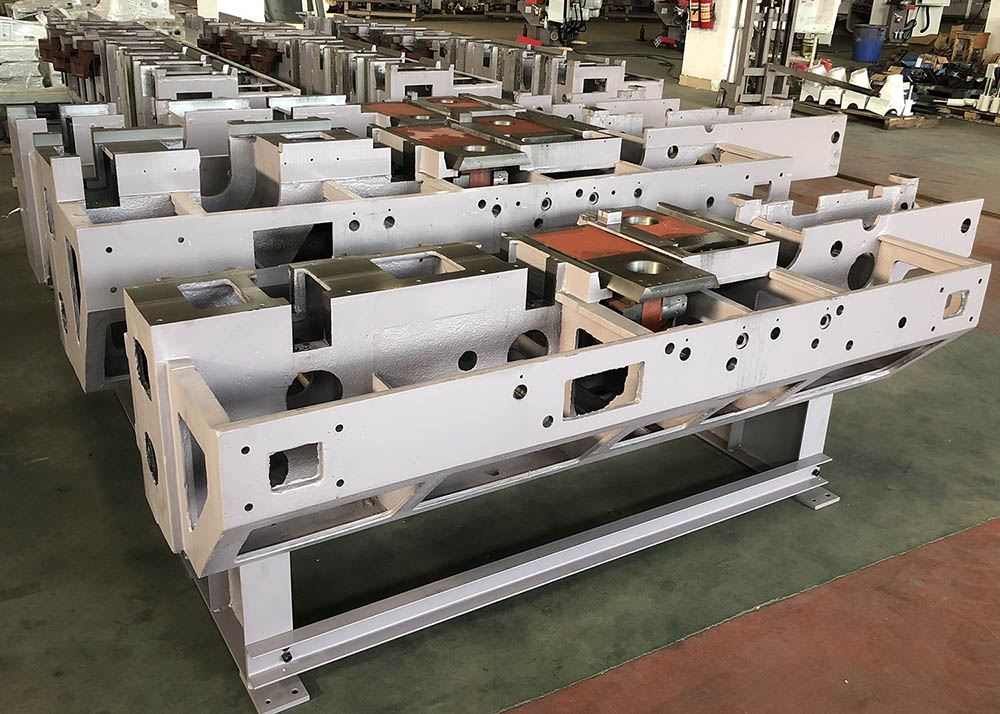

 | Body structure of the machine is made of casting Iron, it has better wear resistance and shock absorption. This provides a good basis for the smooth operation of the cutter shaft and feeding system. |
 | Each cutter shafts have individual Motor , which can ensure maximum cutting power. (Customize option: Change Moter Power as customer requires) |
 | Hard chromed worktable to minimize abrasion, and enhance operational life span. We care about every details! |
Machine Specification
| Model | | VH-M518 |
| Specification | Working width | 25-180 |
| | Working thickness | 8-130 |
| | Working table length | 1500 |
| | Feeding speed | 6-36 |
| | Main spindle diameter (mm) | Φ 40 |
| | Main spindle revolution(r/min) | 6500 |
| | Air pressure (Mpa) | 0.6 |
| Motor power(KW) | 1st LowerShaft | 4kw/5.5HP |
| | Right vertical spindle | 4kw/5.5HP |
| | Left vertical spindle | 4kw/5.5HP |
| | 1st UpperShaft | 5.5kw/7.5HP |
| | 2nd Lower Shaft | 4kw/5.5HP |
| | Feeding beam lifting | 0.55kw/0.75HP |
| | Feeding motor | 3kw/4HP |
| | Total power | 25.05kw/34HP |
| Cutter diameter | 1st Lower Shaft | Φ 125 |
| | Right Vertical spindle | Φ 125-Φ 160 |
| | Left vertical spindle | Φ 125-Φ 160 |
| | 1st Upper Shaft | Φ 125-Φ 160 |
| | 2nd Lower Shaft | Φ 125-Φ 180 |
| Remark | Feeding wheel diameter (mm) | Φ140 |
| | Dust outlet diameter(mm) | Φ140 |
V-HOLD insists high position,high origin ,high value,and develops an integration platform of woodworking machinery
industry.We integrate high quality resources of international industrial chain,form gathering effect of superior
resources,and model high-ranking brnking woodworkingmachinery manufacturer and industrial integrator,who is
reliant all over the world with its best value,high capacity,;arge sca;e,and we;;-known brand.
We stand up to any test and challenge.
The international standard and quality control system has made Seiko products and won the trust of customers.
Unique quality control system for convoy production
We have established our own quality control standard system and database. They strictly control more than 1000
spare parts, and track the quality of 33 working procedures of parts processing. They inspect more than 50 working
procedures of assembly process and test more than 100 data of the whole machine. This process makes the product
more perfect.
ntelligent stability reduces production cost again
Rich has a complete system of processing equipment, the use of international advanced technology, high degree of
automation, high technical accuracy, stable performance, wide range of practical, simple operation and other
characteristics. The combination of advanced technology and perfect performance helps customers to reduce
operating costs more effectively and in
Product Tags:
|
|
High Precision /12month warranty/5 Head Moulder/Woodworking Machine /Energy Saving/wood flooring/profile Images
|
