Heavy Duty Industrial Wood Planer Woodworking Machine For Wooden Furniture
V-HOLD devotes to becoming outstanding enterprise in international woodworking machinery brand and
woodworking machinery industry ,which it is pursuit and dream of V-HOLD.
V-HOLD insists high position ,high origin ,high value ,and develops an integration platform of woodworking
machinery industry.We integrate high quality resources of international industrial chain ,form gathering effect of
superior resources,and modle high --ranking brand of woodworking machinery .We will do our utmost to transform V-
HOLD to be a high -ramking woodworking machinery manufacturer and industrial integrator,who is reliant all over the
world with its best value, high capacity, large scale ,and well-known brand.

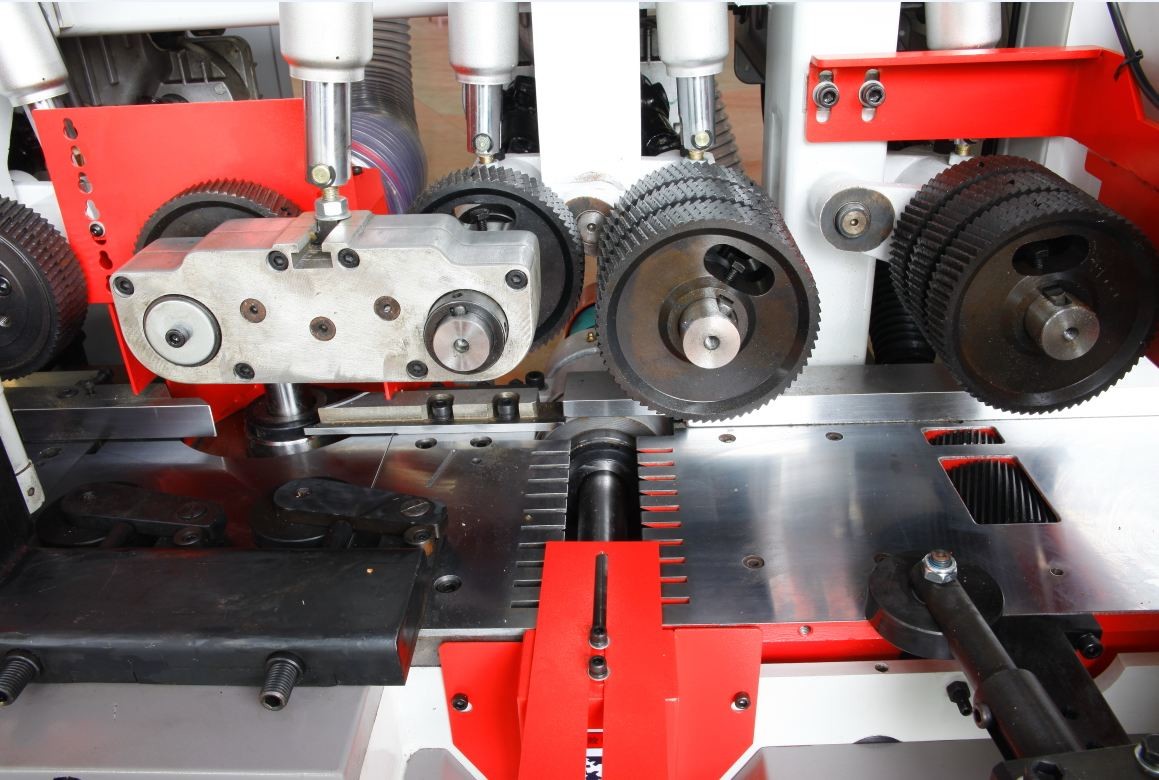

Quick liftable short material device
This mechanism enables the smooth feeding for short woods ,The auciliary feeding roller has the function of
transmission, which makes the feeding mor briskly .With liftable feeding roller , you can change and adjust the knife
easily.
| Model | | VH-M623E | VH-M621 | VH-M618 | VH-M616 |
| Specification | Working width | 25-230 | 25-210 | 25-180 | 25-160 |
| | Working thickness | 8-100 | 8-140 | 8-130 | 8-120 |
| | Working table length | 1970 | 1970 | 1500 | 1500 |
| | Feeding speed | 6-36 | 6-36 | 6-36 | 6-36 |
| | Main spindle diameter
(mm) | Φ 40 | Φ 40 | Φ 40 | Φ 40 |
| | Main spindle revolution (r/min) | 6500 | 6500 | 6500 | 6500 |
| | Air pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor power (KW) | 1st Lower Shaft | 7.5kw/10HP | 5.5kw/7.5HP | 4kw/5.5HP | 4kw/5.5HP |
| | Right vertical spindle | 7.5kw/10HP | 5.5kw/7.5HP | 4kw/5.5HP | 4kw/5.5HP |
| | Left vertical spindle | 7.5kw/10HP | 5.5kw/7.5HP | 4kw/5.5HP | 4kw/5.5HP |
| | 1st Upper Shaft | 11kw/15HP | 7.5kw/10HP | 5.5kw/7.5HP | 5.5kw/7.5HP |
| | 2nd Upper Shaft | 7.5kw/10HP | 5.5kw/7.5HP | 4kw/5.5HP | 4kw/5.5HP |
| | 2nd Lower Shaft | 7.5kw/10HP | 5.5kw/7.5HP | 4kw/5.5HP | 4kw/5.5HP |
| | Top spindle lifting | 0.37kw/0.5HP | | | |
| | Feeding beam lifting | 0.75kw/1HP | 0.55kw/0.75HP | 0.55kw/0.75HP | 0.55kw/0.75HP |
| | Feeding motor | 5.5kw/7.5HP | 4kw/5.5HP | 3kw/4HP | 3kw/4HP |
| | Total power | 55.12kw/75HP | 39.55kw/53.8HP | 29.05kw/39.5HP | 29.05kw/39.5HP |
| Cutter diameter | 1st Lower Shaft | Φ 125 | Φ 125 | Φ 125 | Φ 125 |
| | Right Vertical spindle | Φ 125-Φ 180 | Φ 125-Φ 180 | Φ 125-Φ 160 | Φ 125-Φ 160 |
| | Left vertical spindle | Φ 125-Φ 180 | Φ 125-Φ 180 | Φ 125-Φ 160 | Φ 125-Φ 160 |
| | 1st Upper Shaft | Φ 125-Φ 180 | Φ 125-Φ 180 | Φ 125-Φ 160 | Φ 125-Φ 160 |
| | 2nd Upper Shaft | Φ 125-Φ 180 | Φ 125-Φ 180 | Φ 125-Φ 160 | Φ 125-Φ 160 |
| | 2nd Lower Shaft | Φ 125-Φ 200 | Φ 125-Φ 200 | Φ 125-Φ 180 | Φ 125-Φ 180 |
| Remark | Feeding wheel diameter (mm) | Φ140 | Φ140 | Φ140 | Φ140 |
| | Dust outlet diameter
(mm) | Φ140 | Φ140 | Φ140 | Φ140 |
The pursuit of first-class brand and quality, including a bright future.
Today, with the rapid development of high technology, all kinds of raw materials are decreasing day by day, and the
ecological environment is constantly destroyed. Conservation of resources will become the greatest mission of
mankind. The tremendous demand of decorative materials for logs and the pollution of living environment caused by
paints are the greatest threat to forest resources and human health in the 21st century. In order to reduce the waste of
forest resources, for the sake of the health of all mankind, for the sake of our planet more beautiful, plutocratic
woodworkers and you work together to create a green home pioneer in environmental protection.
