Heavy Duty Six Head Wood Planer Moulder Machine 230mm Working Width 380v / Customize

Name: Heavy Duty Six Head Wood Planer Moulder Machine 230mm Working Width 380v Customize
Brand: V-HOLD
Price: 163800 USD

China Heavy Duty Six Head Wood Planer Moulder Machine 230mm Working Width 380v / Customize wholesale

Brand Name : V-HOLD

Model Number : VH-M623E

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Price : 163800

Type : 4 Side Moulder

Number of head : Six head

Voltage : 380v / Customize

Condition : New

Warranty : Twelve Months

Contact Now

Heavy Duty Four Side Moulder VH-M623E with 230mm working width

Heavier Type Four Side Moulder with 230mm working width

Heavy Duty Six Head Wood Planer Moulder Machine 230mm Working Width 380v / Customize

Four Side Moulder VH-M623E
Professional solution for processing Hard wood strip, floor,
doors and large cutting capacity strips.

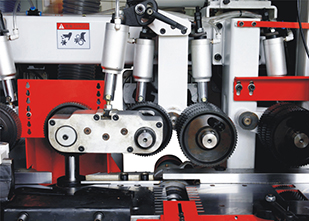

	Quick liftable short material device This mechanism enables the smooth feeding for short piece of woods. The auxiliary feeding roller has the function of transmission, which makes the feeding more briskly. With liftable feeding roller, you can change and adjust the knife easily.

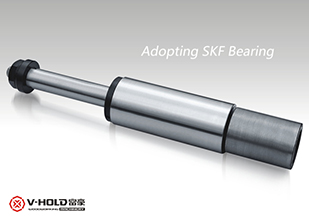

	Every spindle is tested and assembled under air-conditional environment. And the both ends of the spindle is supported by SKF bearing. The stable-worked spindle guarantees the surface roughness of finished products.
	There is feeder switch and emergency stop button at the rear of the machine, easy to operate and adjust.
	Digital display shows the feeding speed of moulder.By adopting Feeding frequency inverter, operation become very easy, it can reduce energy use, and also it protects the machine from wearing due to mechanical transmission.

Model		VH-M623E
Specification	Working width	25-230
	Working thickness	8-100
	Working table length	1970
	Feeding speed	6-36
	Main spindle diameter (mm)	Φ 40
	Main spindle revolution (r/min)	6500
	Air pressure (Mpa)	0.6
Motor power (KW)	1st Lower Shaft	7.5kw/10HP
	Right vertical spindle	7.5kw/10HP
	Left vertical spindle	7.5kw/10HP
	1st Upper Shaft	11kw/15HP
	2nd Upper Shaft	7.5kw/10HP
	2nd Lower Shaft	7.5kw/10HP
	Top spindle lifting	0.37kw/0.5HP
	Feeding beam lifting	0.75kw/1HP
	Feeding motor	5.5kw/7.5HP
	Total power	55.12kw/75HP
Cutter diameter	1st Lower Shaft	Φ 125
	Right Vertical spindle	Φ 125-Φ 180
	Left vertical spindle	Φ 125-Φ 180
	1st Upper Shaft	Φ 125-Φ 180
	2nd Upper Shaft	Φ 125-Φ 180
	2nd Lower Shaft	Φ 125-Φ 200
Remark	Feeding wheel diameter (mm)	Φ140
	Dust outlet diameter (mm)	Φ140
