Name: Working Width 160mm Four Sided Wood Planer VH M416 Cast Iron Body Structure Of Machine
Brand: V-HOLD
Price: 76800 USD

Brand Name : V-HOLD

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Model Number : VH-M416

Price : 76800

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Machine type : 4 Side Moulder

Body Structure of Machine : Cast Iron

Voltage : 380 / Customize

Number of Head : Six Head

Total power : 21.05kw / 28.6HP

Contact Now

Working Width 160mm Four Sided Wood Planer VH - M416 Cast Iron Body Structure Of Machine

The Medium Duty 4 Side Moulder VH-M416

Working Width 160mm Four Sided Wood Planer VH - M416 Cast Iron Body Structure Of Machine

Four Side Moulder VH-M416 has 4 spindles, which can be used to process Soft wood strip, Medium

cutting capacity strip, MDF strip, HDF strip, Glued laminated timber and Square boards. Appliable for

some simple furnitures production such as Children's furniture and Nordic Style Furniture ect, which does

not need complex wood moulding.

VH-M416 Outstanding Character

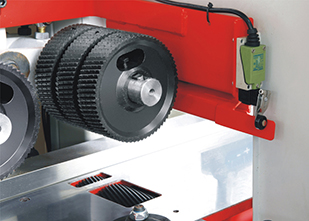

	There is an active feeding wheel in front of the machine worktable, which make feeding powerful.
	Feeding Frequency inverter Digital display, easy to operation, energy saving, and reduce wearing because of mechanical transmission.
	Control panel with new concept design is more visual. And the operation become more convenient and comfortable.
	This setting can adjust the feeding wheel pressing force in stages to ensure smooth feeding of wood materials with different thicknesses.

Model		VH-M416
Specification	Working width	25-160
	Working thickness	8-120
	Working table length	1500
	Feeding speed	6-36
	Main spindle diameter (mm)	Φ 40
	Main spindle revolution(r/min)	6500
	Air pressure (Mpa)	0.6
Motor power(KW)	1st LowerShaft	4kw/5.5HP
	Right vertical spindle	4kw/5.5HP
	Left vertical spindle	4kw/5.5HP
	1st UpperShaft	5.5kw/7.5HP
	Feeding beam lifting	0.55kw/0.75HP
	Feeding motor	3kw/4HP
	Total power	21.05kw/28.6HP
Cutter diameter	1st Lower Shaft	Φ 125
	Right Vertical spindle	Φ 125-Φ 160
	Left vertical spindle	Φ 125-Φ 160
	1st Upper Shaft	Φ 125-Φ 160
Remark	Feeding wheel diameter (mm)	Φ140
	Dust outlet diameter(mm)	Φ140

Situated in Lunjiao town, Shunde district of Foshan city, the biggest woodworking machinery

production base as well as "the Chianese leading woodworking machinery town " V-HOLD

woodworking machinery manufacture Co., Ltd is a large well-known company integrated

woodworking machinery research , processing , marketing as well as application service

More than twenty years of research and development focused on four side moulder

manufacturing experience, tailored to your needs and best suited to your process.
