M516GH four side Moulder ,The hingest feeding speed can up to 60m/min
VH-M516GH
M521GH High Speed Moulder has superior material delivery system.
The highest feeding speed can up to 60m/min with automatic feeding system.
Professional solution for planning large amount of wood material. This machine
can largely reduce processing time of wood ,it improve efficiency and help reduce labour cost
|

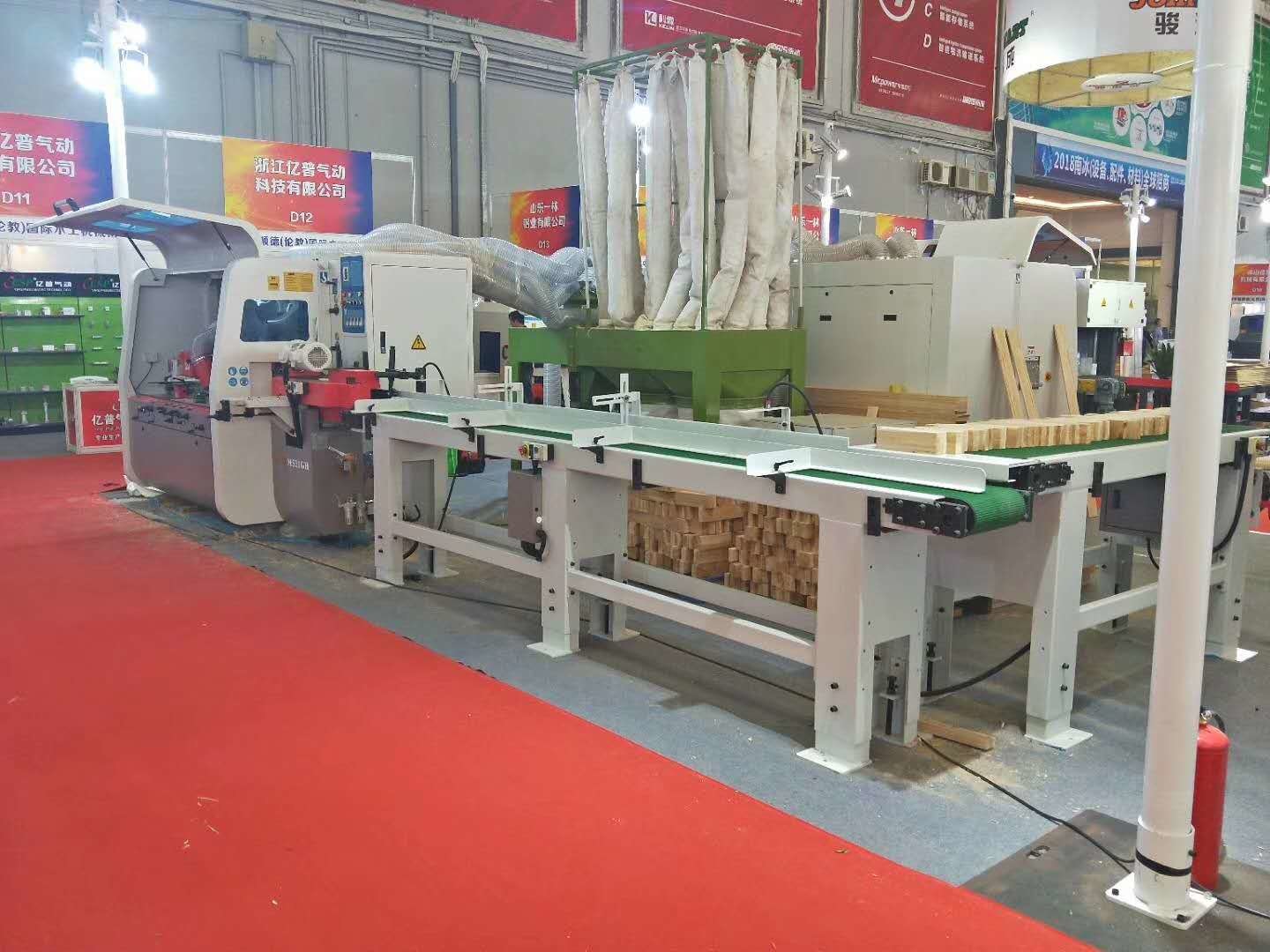

| L shape material delivery carride wood slowly,but the speed of processing is much faster than manual work .It can improve efficiency and help reduce labour cost. |
 | Countertops using special materials, hard chrome plated surface, precision machining. Configure slotted countertops, not only short materials can be processed, but also effectively reduce the friction between wood and countertops; |
 | Professional solution for planning large amount of wood material such as finger joint splicing board. This machine can largely reduce processing time of wood, it improve efficiency and help reduce labour cost. |
| | | VH-M516GH |
| specification | Working width | 25-160 |
| Working thickness | 8-120 |
| Working table length | 1500 |
| Feeding speed | 10-60 |
| Main spindle diameter | Φ40 |
| Main spindle revolution | 7000 |
| Air pressure | 0.6 |
| Motor Power | 1st Lower Shaft | 4kw/5.5HP |
| Right vertical spindle | 4kw/5.5HP |
| Left vertical spindle | 4kw/5.5HP |
| 1st Upper Shaft | 5.5kw/7.5HP |
| 2nd Lower Shaft | 4kw/5.5HP |
| Feeding beam lifting | 0.75kw/1HP |
| Feeding motor | 4kw/5.5HP |
| Total power | 26.05kw/34HP |
| Cutter diameter | 1st Lower Shaft | Φ125 |
| Right vertical spindle | Φ125-Φ160 |
| Left vertical spindle | Φ125-Φ160 |
| 1st Upper Shaft | Φ125-Φ160 |
| 2nd Lower Shaft | Φ125-Φ180 |
| Remark | Feeding wheel diameter | Φ140 |
| Dust outlet diameter | Φ140 |
| Overall dimensions (mm) | |
| Suttle (kg) | 2800 |
- The VH-521GH series is designed and engineered for great saving for your wood cost. The short
- wood come from other machines are reusable on the 521GHGH series. With its high speed feed
- system, you not only save cost of wood waste, but also get high efficiency production. It's a highly
- productive series you've come to expect.
Foshan Fortune Woodworking Machinery Co., Ltd. is a high-tech enterprise which integrates research and
development, manufacture, sale and service of intelligent equipment. For many years, it has provided factory
automated conveying system for woodworking machinery industry, furniture enterprises and solid wood processing
enterprises. With more technical services, it has won unanimous praise from customers.
