Medium Duty 160 Mm Working Width Six Head Moulder High Rigid Body Structure For Sauna Board

Name: Medium Duty 160 Mm Working Width Six Head Moulder High Rigid Body Structure For Sauna Board
Brand: V-HOLD
Price: 116800 USD

China Medium Duty 160 Mm Working Width Six Head Moulder High Rigid Body Structure For Sauna Board wholesale

Brand Name : V-HOLD

Model Number : VH-M616BHS

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Price : 116800

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/yeat

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Product Name : 4-Side Moulder

Voltage : 380 / Customize

Feeding Speed : 6-36 m/min

Working width : 160 mm

Condition : New

Contact Now

4-Side Moulder The Modium duty VH-M616BHS160 Mm Working Width Six Head Moulder High Rigid Body Structure For Sauna Board

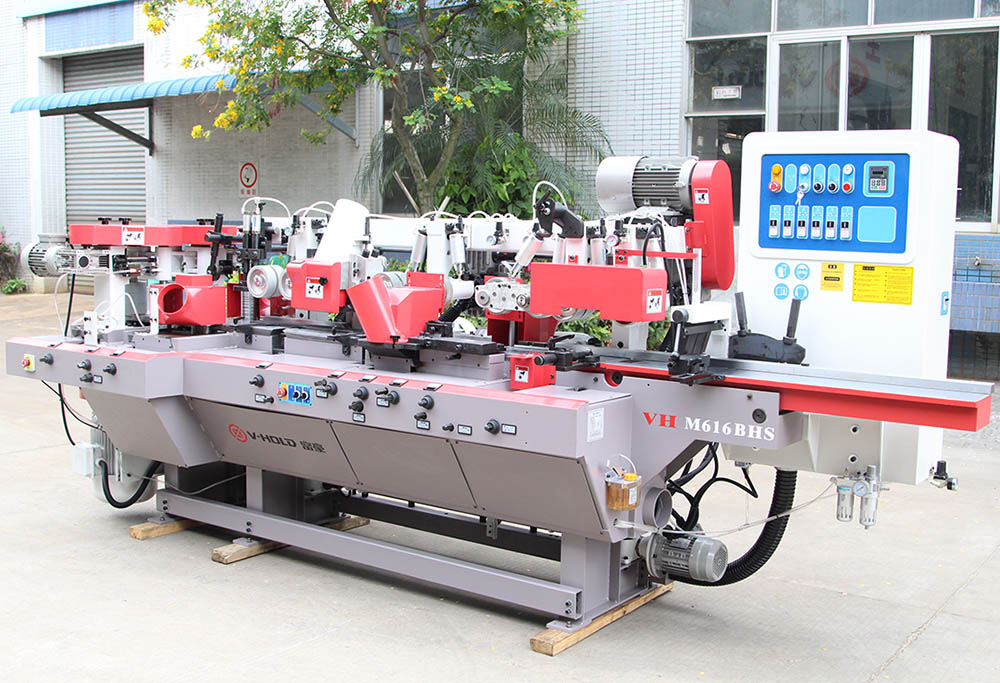

4 Side Moulder VH-M616BHS with slice cutting for sauna board High rigid body structure

Four Side Moulder VH-M616BHS with Slice cutting

VH-M616BHS has 4 cutter shafts for four side planing

and mulitiple rip saw at the end to slice pre-planed

materials. Combining 2 machine in one, helps the

factory save facility cost and also labour cost.

Maximum working width of 160 mm

Profession solution for processing large amout of

sauna borad, wall hanging wood board, antiriot wood,

shuttered window.

Medium Duty 160 Mm Working Width Six Head Moulder High Rigid Body Structure For Sauna Board
Every accessory quality is guaranteed with Exquisite processing equipment and elaborate technology.

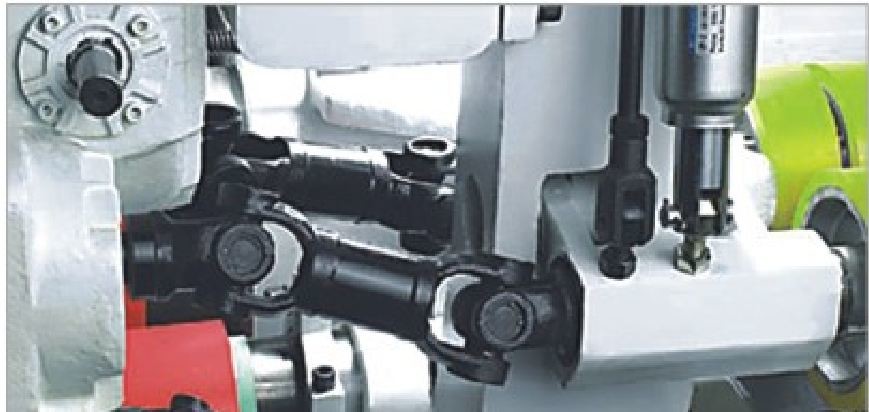

with universal chainless transmission feeding gearing,this product is precise and firm with long service life, which is free from maintenance .

Machine specification

Model		VH-M616BHS
Specification	Working width	25-160
	Working thickness	8-120
	Working table length	1500
	Feeding speed	6-36
	Main spindle diameter (mm)	Φ 40
	Main spindle revolution(r/min)	6500
	Air pressure (Mpa)	0.6
Motor power(KW)	1st LowerShaft	4kw/5.5HP
	Right vertical spindle	5.5kw/7.5HP
	Left vertical spindle	5.5kw/7.5HP
	1st UpperShaft	5.5kw/7.5HP
	Right Saw Shaft	15kw/20HP
	Left Saw Shaft	15kw/20HP
	Feeding beam lifting	0.55kw/0.75HP
	Feeding motor	4.5kw/5.5HP
	Left discharging motor	0.75kw/1HP
	Right discharging motor	0.75kw/1HP
	Total power	56.55kw/76.8HP
Cutter diameter	1st Lower Shaft	Φ 125
	Right Vertical spindle	Φ 125-Φ 160
	Left vertical spindle	Φ 125-Φ 160
	1st Upper Shaft	Φ 125-Φ 160
	Right saw arbor	Φ 180-Φ 250
	Left saw arbor	Φ 180-Φ 250
	Saw shaft speed	4500
	Saw shaft diameter	Φ 50
Remark	Feeding wheel diameter (mm)	Φ 140
	Dust outlet diameter (mm)	Φ 140
	Overall dimensions (mm)	L4450W1800H1920
	Suttle (kg)	3780

Medium Duty 160 Mm Working Width Six Head Moulder High Rigid Body Structure For Sauna Board
Foshan Fortune Woodworking Machinery Co., Ltd. is a high-tech enterprise which integrates research and

development, manufacture, sale and service of intelligent equipment. For many years, it has provided factory

automated conveying system for woodworking machinery industry, furniture enterprises and solid wood processing

enterprises. With more technical services, it has won unanimous praise from customers
