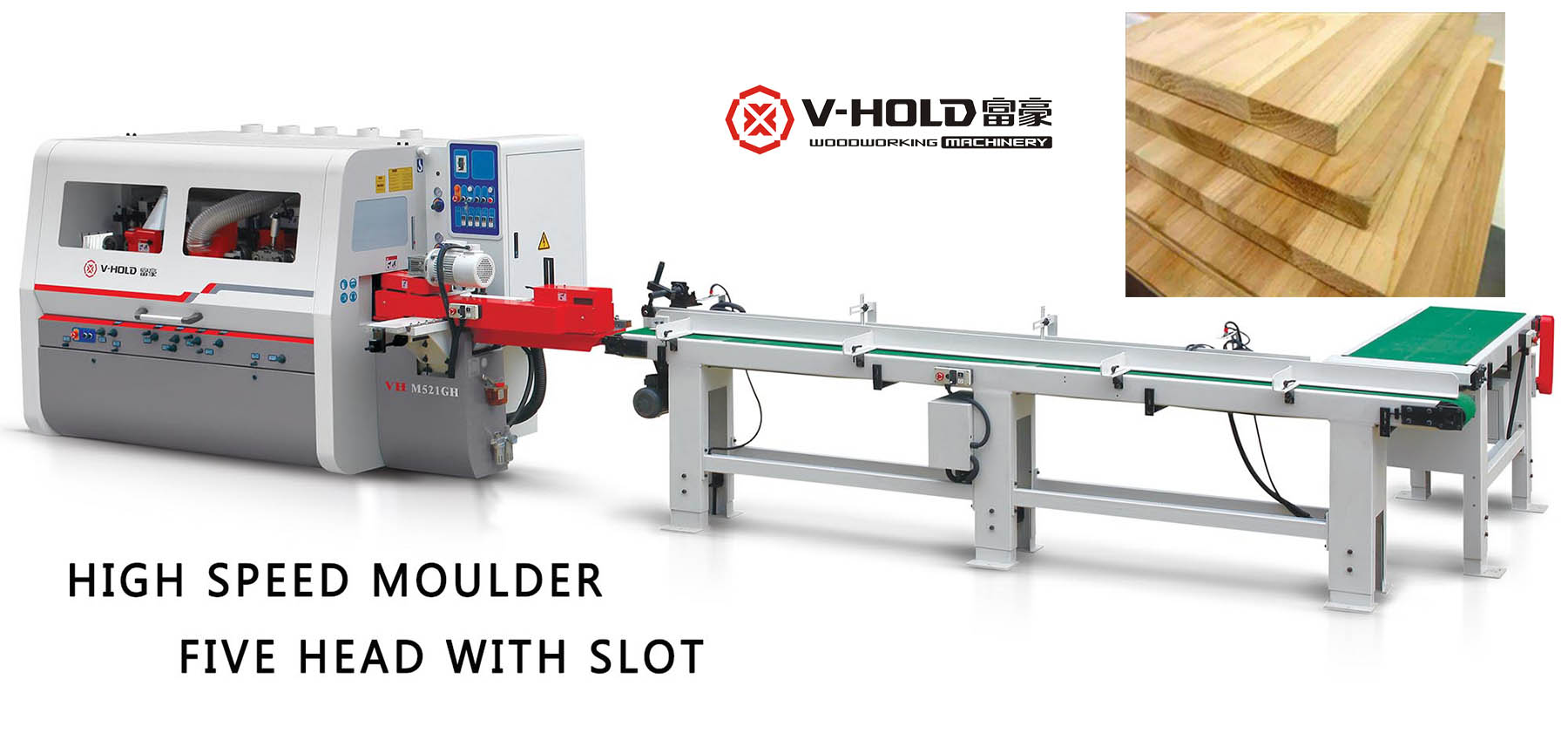

Five Head VH-M521GH with slot for short materials length 100-120 mm, High Speed moulder,Feeding speed(10-60m/min)
Four Side Moulder (High Speed)
VH-M521GH for short material
| VH-M521GH uses inverter to feed, speed range is 10-60 m/min. Casting Iron machine body provides stable performance for this High speed moulder, it laid a good foundation for the operation of cutter shafts and materials feeding. This machine can be used on producing finger-joined board by using 10 -16 edge spiral knife; |
VH-M521GH Product Features
 | L shape material delivery carried wood slowly,but the speed of processing is much faster than manual work.It can improve efficiency and help reduce
labour cost. |
 | Countertops using special materials, hard chrome plated surface, precision machining. Configure slotted countertops, not only short materials can be processed, but also effectively reduce the friction between wood and countertops; |
 | Professional solution for planning large amount of wood material such as finger joint splicing board. This machine can largely reduce processing time of wood, it improve efficiency and help reduce labour cost. |
| | | VH-M521GH |
| specification | Working width | 25-210 |
| Working thickness | 8-140 |
| Working table length | 1970 |
| Feeding speed | 10-60 |
| Main spindle diameter | Φ40 |
| Main spindle revolution | 7000 |
| Air pressure | 0.6 |
| Motor Power | 1st Lower Shaft | 5.5kw/7.5HP |
| Right vertical spindle | 5.5kw/7.5HP |
| Left vertical spindle | 5.5kw/7.5HP |
| 1st Upper Shaft | 7.5kw/10HP |
| 2nd Lower Shaft | 5.5kw/7.5HP |
| Feeding beam lifting | 0.75kw/1HP |
| Feeding motor | 5.5kw/7.5HP |
| Total power | 35.75kw/48.5HP |
| Cutter diameter | 1st Lower Shaft | Φ125 |
| Right vertical spindle | Φ125-Φ180 |
| Left vertical spindle | Φ125-Φ180 |
| 1st Upper Shaft | Φ125-Φ180 |
| 2nd Lower Shaft | Φ125-Φ200 |
| Remark | Feeding wheel diameter | Φ140 |
| Dust outlet diameter | Φ140 |
| Overall dimensions (mm) | L3800*W1650*H1900 |
| Suttle (kg)
| 2100 |
Situated in Lunjiao town ,Shunde district of Foshan city, the biggest woodworking machinery production base sa well
sa "the Chinese leading woodworking machinery town",V-HOLD woodworking machinery manufacture Co.,Ltd is a
large well-known company integrated woodwrking machineresearch ,processing, marketing as well sa application
service.
Founded in 1996,V-HOLD commits itself to provide the most secure ,reliable,efficient,energy-saving, economical
production equipment for the customers around the world .Nowadys, most of the products including 4side moulder,
Double side planner,Single rip saw, Multiple rip saw, Multiple rip saw with double side planner, and Automotive floor
production line have passed ISO9001: 2000 quality system certification ,German TUV safety certification and
European Union CE certification and V-HOLD has achieved the title of "Famous Brand of Guangdong province".
