4 Side Moulder VH-M616BHS with slice cutting for sauna board High rigid body structure
Four Side Moulder VH-M616BHS with Slice cutting
| VH-M616BHS has 4 cutter shafts for four side planing and mulitiple rip saw at the end to slice pre-planed materials. Combining 2 machine in one, helps the factory save facility cost and also labour cost. Maximum working width of 160 mm Profession solution for processing large amout of sauna borad, wall hanging wood board, antiriot wood, shuttered window. Machine specification |  |
Exquisite production technology with orderly inside.
Every accessory quality is guaranteed with Exquisite processing equipment and elaborate technology.

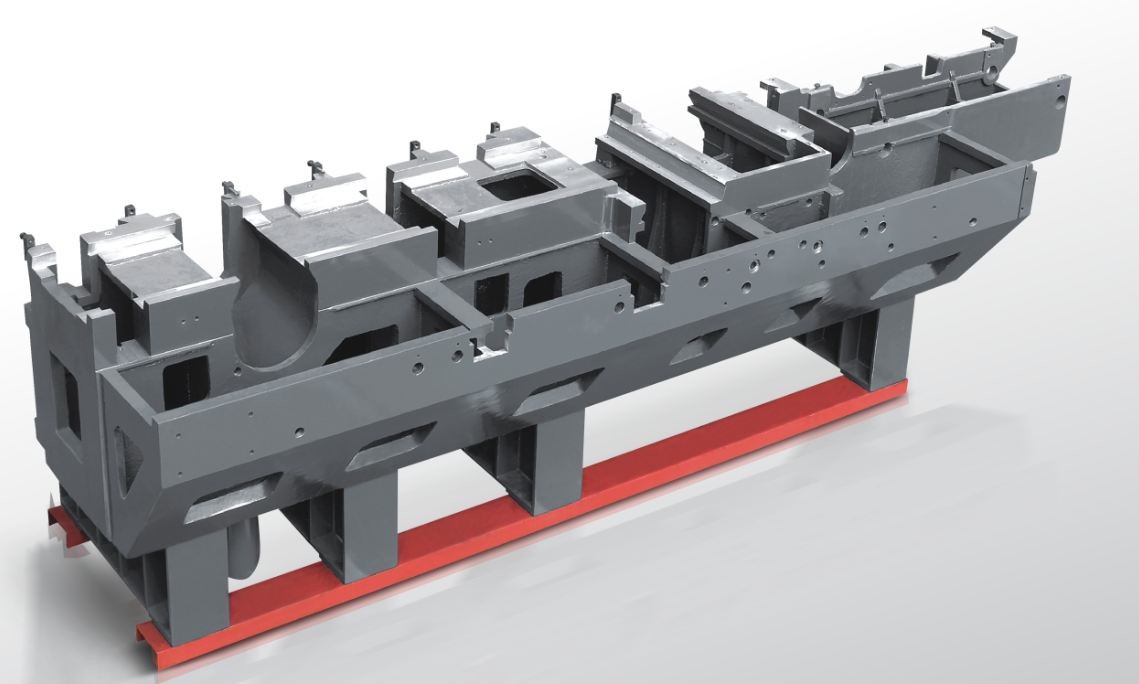

High rigid body structure : The lathe bed is of integral structure,being made of casting with
damping perfor mance, and the rigidity of the lathe bed is better.Laying a good foundution for the smooth running of the cutter shaft and feeding system.
| Model | | VH-M616BHS |
| Specification | Working width | 25-160 |
| | Working thickness | 8-120 |
| | Working table length | 1500 |
| | Feeding speed | 6-36 |
| | Main spindle diameter (mm) | Φ 40 |
| | Main spindle revolution(r/min) | 6500 |
| | Air pressure (Mpa) | 0.6 |
| Motor power(KW) | 1st LowerShaft | 4kw/5.5HP |
| | Right vertical spindle | 5.5kw/7.5HP |
| | Left vertical spindle | 5.5kw/7.5HP |
| | 1st UpperShaft | 5.5kw/7.5HP |
| | Right Saw Shaft | 15kw/20HP |
| | Left Saw Shaft | 15kw/20HP |
| | Feeding beam lifting | 0.55kw/0.75HP |
| | Feeding motor | 4.5kw/5.5HP |
| | Left discharging motor | 0.75kw/1HP |
| | Right discharging motor | 0.75kw/1HP |
| | Total power | 56.55kw/76.8HP |
| Cutter diameter | 1st Lower Shaft | Φ 125 |
| | Right Vertical spindle | Φ 125-Φ 160 |
| | Left vertical spindle | Φ 125-Φ 160 |
| | 1st Upper Shaft | Φ 125-Φ 160 |
| | Right saw arbor | Φ 180-Φ 250 |
| | Left saw arbor | Φ 180-Φ 250 |
| | Saw shaft speed | 4500 |
| | Saw shaft diameter | Φ 50 |
| Remark | Feeding wheel diameter (mm) | Φ 140 |
| | Dust outlet diameter (mm) | Φ 140 |
| | Overall dimensions (mm) | L4450*W1800*H1920 |
| | Suttle (kg) | 3780 |
V-HOLD has many years of professional experience in the production of woodworking machinery, doors, furniture,
flooring, cabinets, wooden houses and other production lines. It has obtained CE certification and exported to more
than 60 countries in Europe and America. It is a designated supplier of the United Nations and a national high-tech
enterprise.
