Industrial Wood Molding Machine , High Speed Moulder Woodworking Machine

Product Categories

V-Hold Woodworking Machinery Co., Ltd.

Contact Now

Name: Industrial Wood Molding Machine High Speed Moulder Woodworking Machine
Brand: V-HOLD
Price: 166800 USD

Brand Name : V-HOLD

Model Number : VH-M621HS

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Price : 166800

Machine Type : Four Side Moulder

Cutter shaft number : 4 cutter shafts and 2 saw shafts

Voltage : 380 / Customize

Speed of working : 6 – 36 m/min

Working thickness : 8-140mm

Working table length : 1970mm

Contact Now

Industrial Wood Molding Machine , High Speed Moulder Woodworking Machine

Slice Cutting 4-Side Moulder VH-M621HS
Industrial Wood Molding Machine , High Speed Moulder Woodworking Machine

M621HS is more than one machine, it combines 4-Side Moulder and Multiple Rip Saw. It can reduce

processing time of wood and improve efficiency.

Professional Solution for processing sauna board, wall hanging wood board, antiriot wood, shuttered

window and other multi-piece molded.

	These two saw arbor can fit with multiple saw, so multiple can one-time saw a piece of wood.

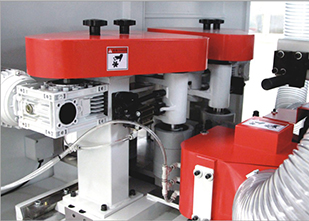

	Adopting four vertical feeding wheel to ensure discharge smoothly.
	Each shaft have individual Motor , which can ensure maximum cutting power.
	Feeding wheel pressing force can be adjusted by this 3 knob in stages to ensure smooth feeding of wood materials with different thicknesses.

Model		VH-M621HS
Specification	Working width	25-210
	Working thickness	8-140
	Working table length	1970
	Feeding speed	6-36
	Main spindle diameter (mm)	Φ 40
	Main spindle revolution(r/min)	6500
	Air pressure (Mpa)	0.6
Motor power(KW)	1st LowerShaft	5.5kw/7.5HP
	Right vertical spindle	5.5kw/7.5HP
	Left vertical spindle	7.5kw/10HP
	1st UpperShaft	7.5kw/10HP
	Right Saw Shaft	18.5kw/25HP
	Left Saw Shaft	18.5kw/25HP
	Feeding beam lifting	0.55kw/0.75HP
	Feeding motor	5.5kw/7.5HP
	Left discharging motor	0.75kw/1HP
	Right discharging motor	0.75kw/1HP
	Total power	70.5kw/94HP
Cutter diameter	1st Lower Shaft	Φ 125
	Right Vertical spindle	Φ 125-Φ 180
	Left vertical spindle	Φ 125-Φ 180
	1st Upper Shaft	Φ 125-Φ 180
	Right saw arbor	Φ 180-Φ 300
	Left saw arbor	Φ 180-Φ 300
	Saw shaft speed	4500
	Saw shaft diameter	Φ50
Remark	Feeding wheel diameter (mm)	Φ140
	Dust outlet diameter (mm)	Φ140
	Overall dimensions (mm)	L4800W1900H1940
	Suttle (kg)	4300

Industrial Wood Molding Machine , High Speed Moulder Woodworking Machine

External aluminium is firm and weatherproof, interior wood is natural and beautiful, interior solid wood decoration is

luxurious, with noble style and personality characteristics. Solid wood is strictly treated by European standard, and

treated by professional paint. It feels comfortable, gentle and luxurious, only to create quiet and clear private space

for you.
