160 Mm Working Width Wood Moulding Machine /4 side moulder/profile

Name: 160 Mm Working Width Wood Moulding Machine 4 side moulderprofile
Brand: V-HOLD
Price: 108000 USD

Brand Name : V-HOLD

Model Number : VH-M616

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Delivery Time : 30-45 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Price : 108000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Machine Type : 4 Side Moulder

Body Structure : Cast Iron

Working Width : 160 mm

Voltage : 380 / Customize

Condition : New

Contact Now

160 Mm Working Width Wood Moulding Machine

Medium Type 4 Side Moulder VH-M616
160 Mm Working Width Wood Moulding Machine /4 side moulder/profile
Support optional short wood roller to make sure the smooth convey,The front and back pressing plate can be

adjusted respectively. Even the wood thickness changes frequently,youu can stabilize it under worktable. Every

accessory quality is guaranteedwith Exquisite processing equipment and elaborate technology.

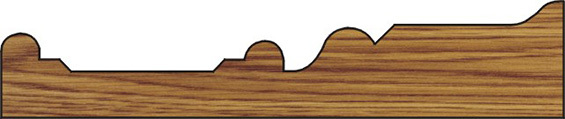

There are some example of moulding below:


Solid wood picture frame	Solid wood line

VH-M616 Product Details

1. The lathe bed is of integral structure , being made of casting with damping performance and the rigidity of the

lathe bed is better. Laying a good foundation for the smooth running of the cutter shaft and feeding system.

2. Inverter feeding speed range from 6 – 36m/min

3. Each shaft have individual Motor , which can ensure maximum cutting power

4. The adjustment of spindle is in front of the machine for convenience

5. Hard chromed worktable good provide wear resistance

6. The under drive roller is equipped for advancing feeding performance.

7. Manual lubrication to the work table and carriage , easy to centralized control

8. Configure well-known brand electrical components, strong stability

9. Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation

in thickness;

10. Equipped the short material auxiliary device for improving the smoothness of feeding short piece material.

11. Other alternative configurations: The normal plane can change to slotted plane for special requirement of the

customers; Increaseing the power of motor; Changing voltage of the machine

Model		VH-M616
Specification	Working width	25-160
	Working thickness	8-120
	Working table length	1500
	Feeding speed	6-36
	Main spindle diameter (mm)	Φ 40
	Main spindle revolution(r/min)	6500
	Air pressure (Mpa)	0.6
Motor power(KW)	1st LowerShaft	4kw/5.5HP
	Right vertical spindle	4kw/5.5HP
	Left vertical spindle	4kw/5.5HP
	1st UpperShaft	5.5kw/7.5HP
	2nd UpperShaft	4kw/5.5HP
	2nd Lower Shaft	4kw/5.5HP
	Feeding beam lifting	0.55kw/0.75HP
	Feeding motor	3kw/4HP
	Total power	29.05kw/39.5HP
Cutter diameter	1st Lower Shaft	Φ 125
	Right Vertical spindle	Φ 125-Φ 160
	Left vertical spindle	Φ 125-Φ 160
	1st Upper Shaft	Φ 125-Φ 160
	2nd Upper Shaft	Φ 125-Φ 160
	2nd Lower Shaft	Φ 125-Φ 180
Remark	Feeding wheel diameter (mm)	Φ140
	Dust outlet diameter(mm)	Φ140

Note: Any variation to the specification above mentioned will not be further notified since the product specification

and designs keeps on changing.
