Heavy Duty 230mm Four Side Moulder Main Spindle Φ 40mm VH - M623RU Shock Resistance

Brand Name : V-HOLD

Model Number : VH-M623RU

Certification : ISO9001:2015 , CE certificate

Place of Origin : CHINA

MOQ : One Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100units/year

Delivery Time : 60-75 days after deposit received

Packaging Details : Standard export package or packed as client’s requirement

Product Name : 4 Side Moulder

Machine Body Structure : Casting Iron

Voltage : 380 / Customize

Working Width : 230 mm

Main spindle : Φ 40

Contact Now

Heavy Duty Four Side Moulder VH-M623RU ,Seek for change,we become more changeable.

Heavier Type Four Side Moulder with 230mm working width

Four Side Moulder VH-M623RU

Professional solution for processing Hard wood strip, floor,
doors and large cutting capacity strips. There are some example below.Seek for change,we become more changeable.

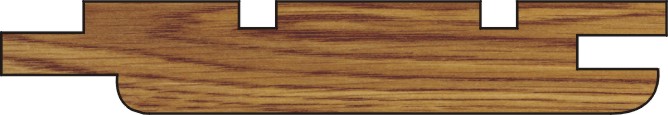

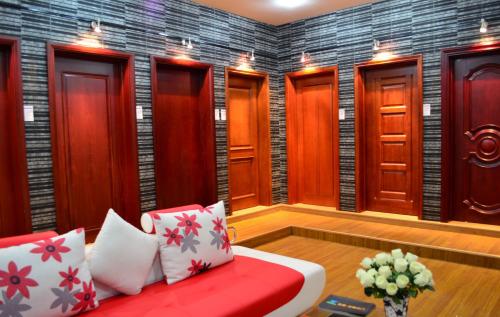

Solid wood door frame sample	Solid wood floor sample	Kitchen cabinet door frame sample

Feature

1. Body structure of the machine is made of casting Iron, it has better wear resistance and shock absorption. This provides a good basis for the smooth operation of the cutter shaft and feeding system;

2. This Machine have Inverter feeding , feeding speed can up to 36 m/min;

3. Each spindle have its own Motor , which can guarantee the power for cutting;

4. All shaft adjustment are carried out in front of the machine for convenience;

5. Electroplating with chrome improves durability of the worktable surface;

6. The under drive roller improves feeding performance;

7. Adopting electric component from well-known brand with steady quality;

8. Sealed safety enclosure avoid splashing of wood chips and insulate the noises, it is good for the safe protection;

9. Short material auxiliary device is equipped for advancing the smooth feeding of short piece availably;

10. Optionally Choice: Slotted plane for special need of the customers, restructuring to high speed moulder with speed up to 60m/min.

Model		VH-M623RU
Specification	Working width	25-230
	Working thickness	8-160
	Working table length	1970
	Feeding speed	6-36
	Main spindle diameter (mm)	Φ 40
	Main spindle revolution (r/min)	6500
	Air pressure (Mpa)	0.6
Motor power (KW)	1st Lower Shaft	7.5kw/10HP
	Right vertical spindle	7.5kw/10HP
	Left vertical spindle	7.5kw/10HP
	2st Right vertical spindle	7.5kw/10HP
	1st Upper Shaft	11KW/15HP
	Universal spindle	5.5kw/10HP
	Feeding beam lifting	0.55kw/0.75HP
	Feeding motor	5.5kw/7.5HP
	Total power	52.55kw/71.4HP
Cutter diameter	1st Lower Shaft	Φ 125
	Right Vertical spindle	Φ 125-Φ 180
	Left vertical spindle	Φ 125-Φ 180
	2st rght Vertical spindle	Φ 125-Φ 180
	1st Upper Shaft	Φ 125-Φ 180
	Universal spindle	Φ 125-Φ 180
Remark	Feeding wheel diameter (mm)	Φ140
	Dust outlet diameter (mm)	Φ140

More than 30 kinds of options,10 types of different spindle configurations to meet variable individual requirements-M23 moulder series.
